Threaded Swing Check Valves
Threaded SwingCheck Valves
Threaded Swing Check Valves
Depending on your needs, Tiger Valve provides Threaded Swing Check Valves that come in materials such as ductile iron and carbon steel. The design of our swing type check valves provides a field repairable, high-quality, low differential check valve. TVC threaded check valves come in 1" through 3" and are NACE compliant.
The pressure classes differ per the material classes of our threaded swing check valves:
Ductile Iron:
300# to 2000# Working Pressure Range
Carbon Steel:
720# to 3600# Working Pressure Range
The TVC Swing Check Valves are manufactured to be Tiger Tough, ensuring consistent performance through the life of the threaded swing check valve. For more information on the swing check valves we offer, contact us.
Standard Features:
- Stainless Steel Trim
- Top Entry Design
- Field Serviceable
- HNBR Sealed Cap
- Plugged Port on Cap

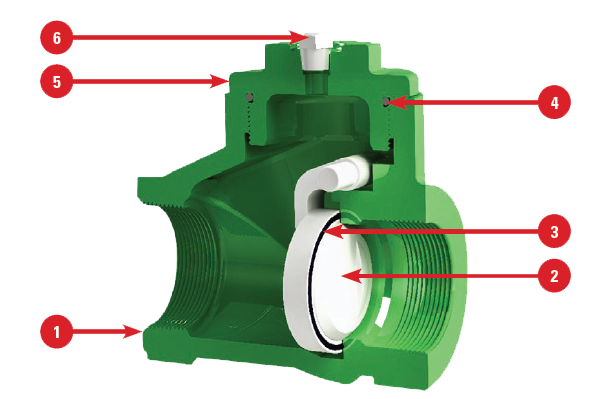

Material Specifications
Manufactured to the Following Specifications:
- ISO 9000 Quality System
- API 6D Specification for Pipeline Valves
- ASME B16.34 Valves-Flanged, Threaded End
- ASME B16.5 Pipe Flanges and Flanged Fittings
- NACE MR0175 Sulfide Stress Cracking Resistant Metallic
- Materials for Oilfield Equipment
Flow Coefficients
